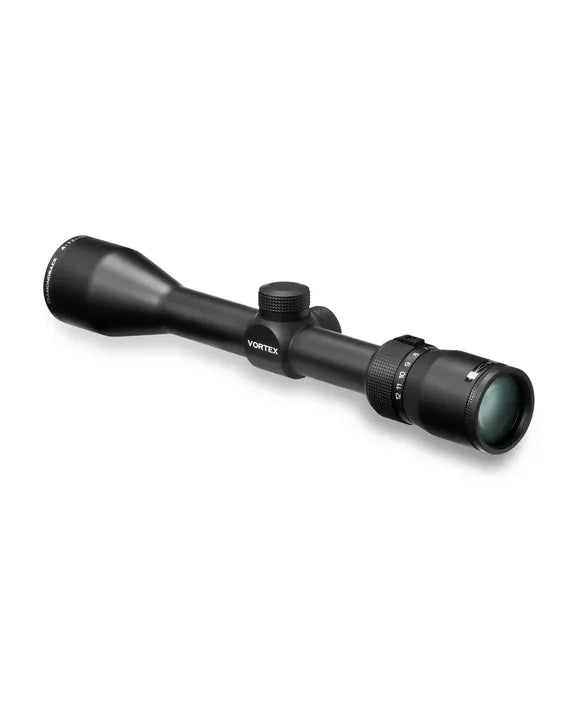

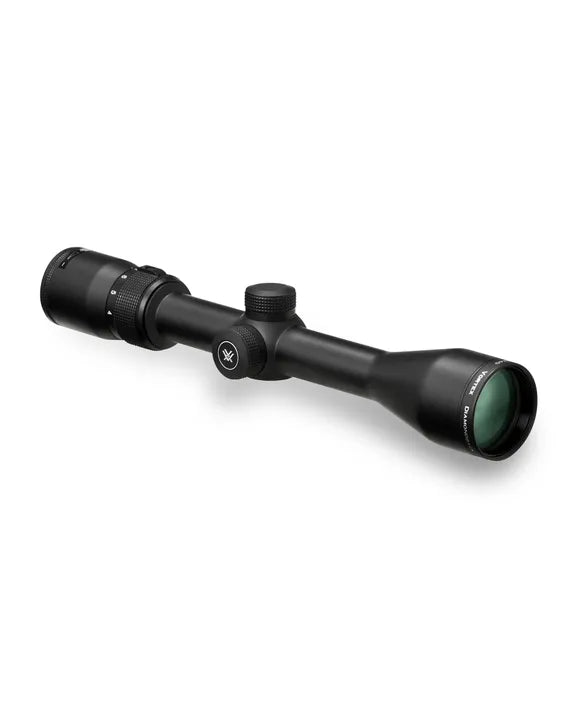

Vortex Diamondback 4-12x40 Dead-Hold BDC Riflescope
With a long legacy of proven grit, Diamondback® is a true workhorse, delivering hard-working reliability in trusted lineup of models. Excellent low-light capability. Brilliant contrast and sharpness that serves up impressive images. Renowned for toughness and accuracy, it’s built with durable construction and a lightweight design, giving hunters the confidence to push further and succeed in any terrain. Simple to use and rugged enough for any hunt, Diamondback® is made to go the distance, from the East to the Rockies and beyond.
Included in the Box
- Removable Lens Covers
- Lens Cloth
XD™ Optical System
Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration, and guarantees bright, high-contrast images.
Fully Multi-Coated Lenses
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Argon Gas Purged
Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.
Fast-Focus Eyepiece
Allows for quick and easy reticle focusing.
Aircraft Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Low-Glare Matte Black Anodize
Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Waterproof
Designed to withstand harsh weather conditions.
Fogproof
Designed to withstand a wide range of temperatures.
Shockproof
Designed to withstand the highest levels of recoil and impact.
| Magnification | 4-12x |
|---|---|
| Objective Lens Diameter | 40 mm |
| Focal Plane | Second Focal Plane |
| Reticle | Dead-Hold® BDC (MOA) |
| Eye Relief | 3.1" |
| Field of View | 32.4' - 11.3' @ 100 yds |
| Turret Style | Capped |
| Tube Size | 1 inch |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 60 MOA |
| Max Windage Adjustment | 60 MOA |
| Parallax Setting | 100 yds. |
| Length | 12.0" |
| Weight | 14.2 oz |
