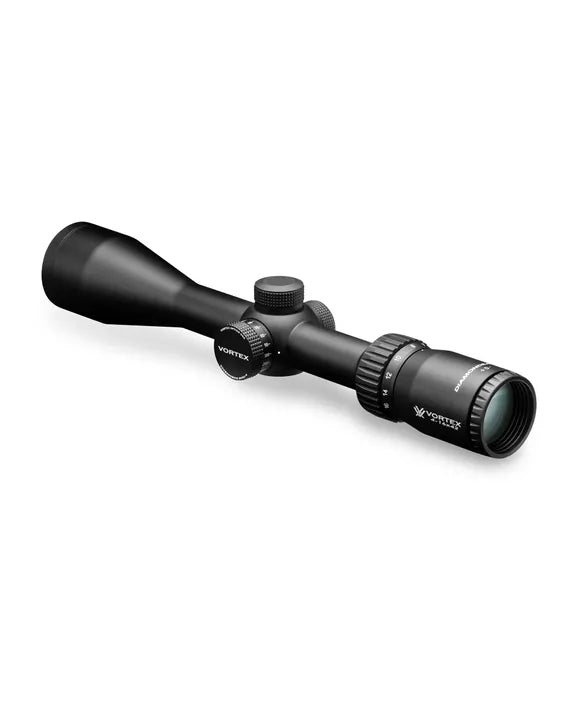

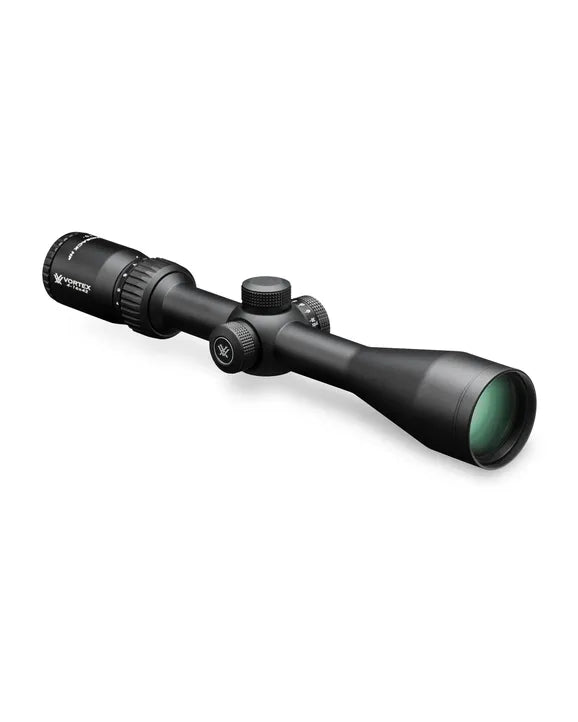

The Diamondback HP (High Performance) riflescope offers a full-on array of features that discerning hunters are sure to appreciate. Optically, these scopes hit the proverbial mark. XD extra-low dispersion glass increases resolution and color fidelity while XR fully multi-coated lenses maximize every minute of shooting light. The side focus/parallax adjustment is easily accessible while keeping a trim profile and allowing optimal mounting height. And, with a 4x zoom range, the Diamondback HP offers highly versatile magnification.
XD™ Optical System
Premium optical system and select glass elements deliver exceptional resolution, edge-to-edge sharpness, greatly reduce chromatic aberration and guarantee clean, bright, sharp, high-contrast images.
XR™ Lens Coatings
Premium anti-reflective coatings on all air-to-glass surfaces provide superior light transmission for exceptional clarity and low-light performance.
ArmorTek®
Ultra-hard exterior lens coatings defend against scratches, oil, and dirt.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Shockproof
Designed to withstand the highest levels of recoil and impact.
| Magnification |
4-16x |
| Objective Lens Diameter |
42 mm |
| Focal Plane |
Second Focal Plane |
| Reticle |
Dead-Hold® BDC (MOA) |
| Eye Relief |
4.0 inches |
| Field of View |
23.8-6.1 ft/100 yds |
| Turret Style |
Capped |
| Tube Size |
1 inch |
| Adjustment Graduation |
1/4 MOA |
| Travel Per Rotation |
15 MOA |
| Max Elevation Adjustment |
80 MOA |
| Max Windage Adjustment |
80 MOA |
| Parallax Setting |
30 yards to infinity |
| Length |
12.5 inches |
| Weight |
18 oz |
